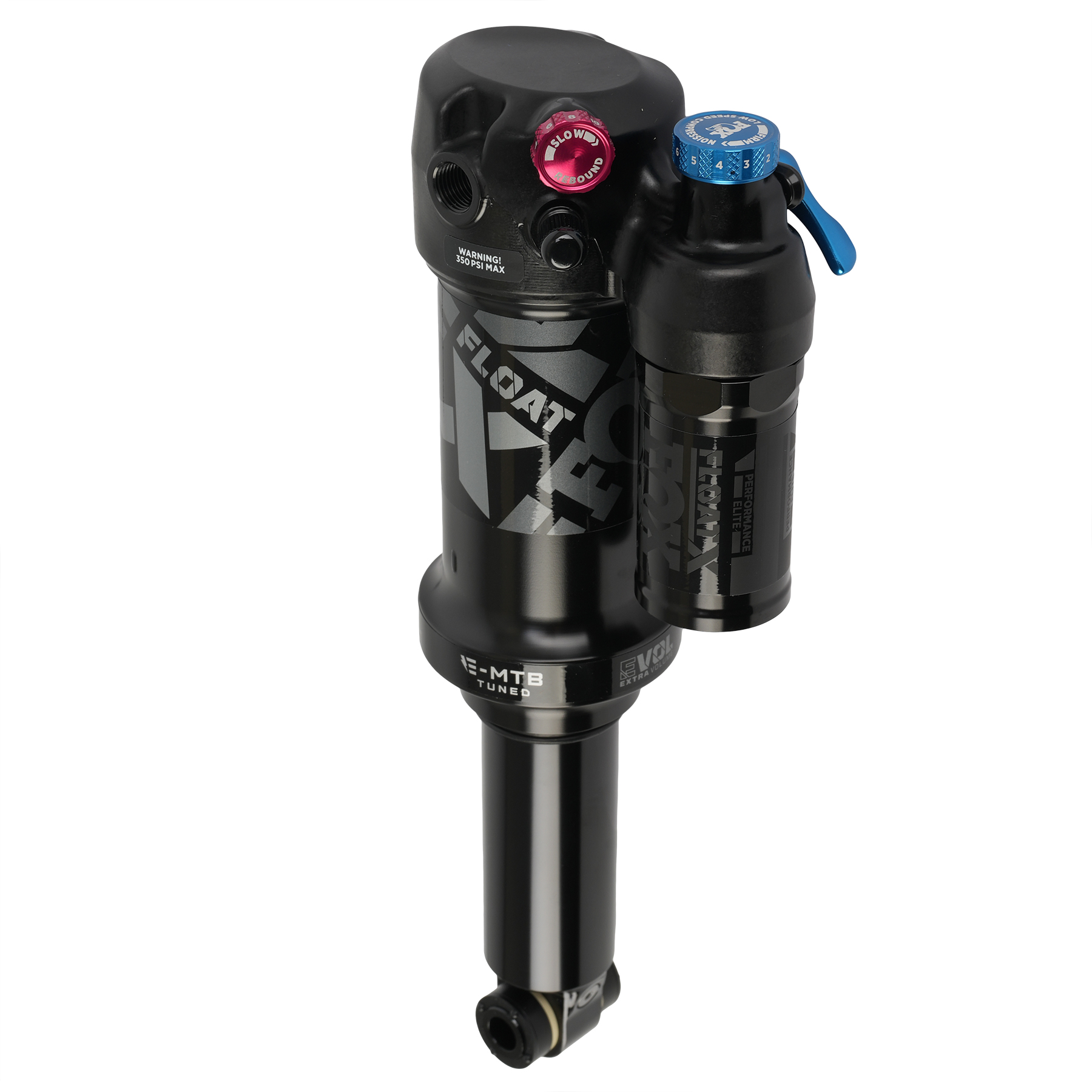

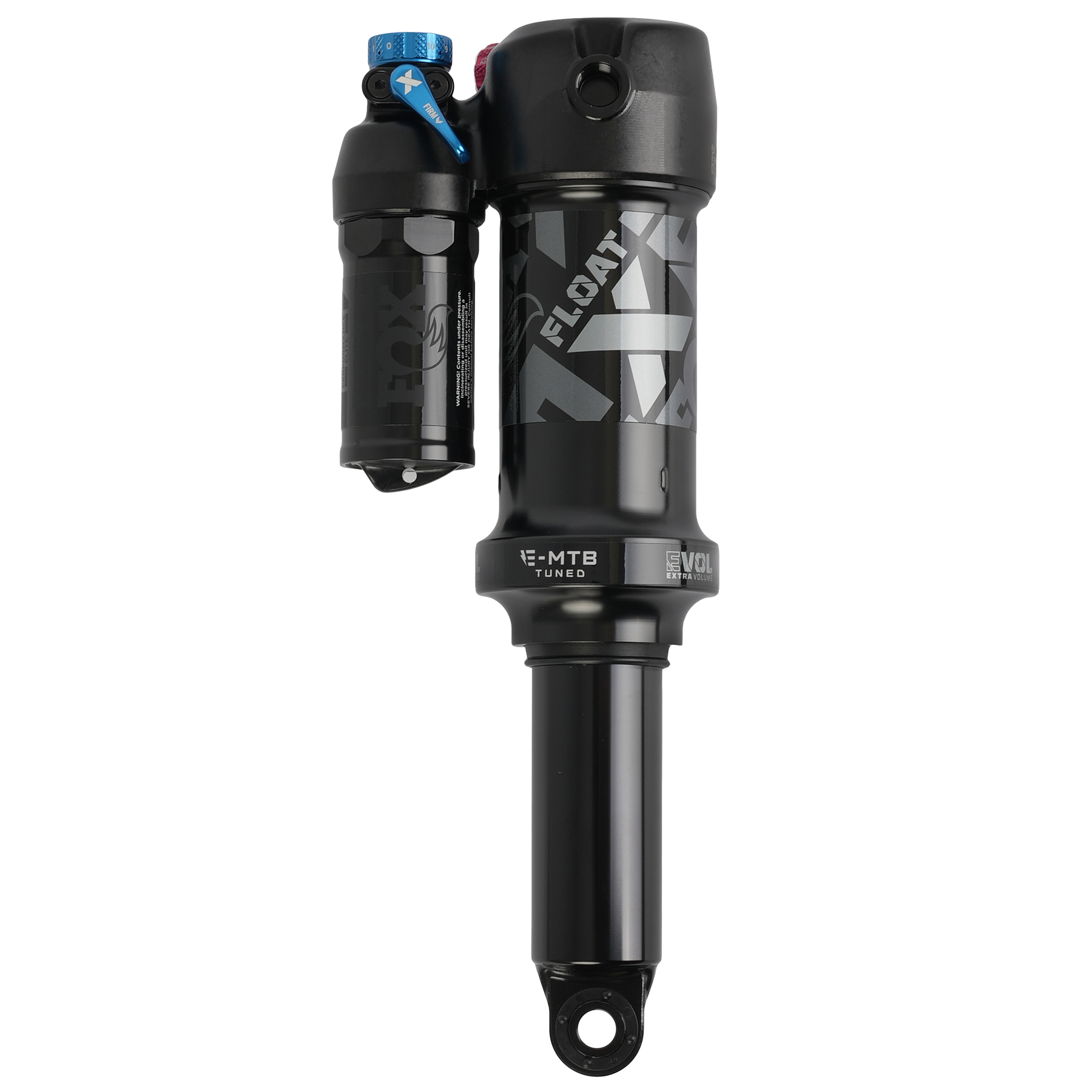

FLOAT X – The Master of All-Mountain

Whether aggressive trail riding or enduro, the advanced damping, consistent performance and superior durability make the FLOAT X the easy choice for any mountain biker in pursuit of downhill records. As a representative of the Performance Elite series, this rear shock is in no way inferior to the Factory models on a functional level. The difference lies in the black anodized finish for the air chamber and the body of the versatile air shock, which is used instead of the gold Kashima coating.

Technical details – FOX FLOAT X rear shock

• Series: Performance Elite
• Air chamber: EVOL, LV (Large Volume), anodized
• Body: anodized
• Adjustability via lever: 2 positions (Open, Firm)
• Low Speed Compression (LSC): 11 clicks
• Rebound Low Speed (LSR): 16 clicks
• Max. air pressure: 350 psi (24.1 bar)

All Terrain Adaptability. Thanks to the tool-free adjustment of compression and rebound, the FLOAT X shock can be quickly and easily adjusted to the prevailing terrain and riding conditions. While the 11-stage Low Speed Compression controller All-Mountain offers racers the necessary adaptability for descents, the 2-position adjustment lever, which runs on an independent circuit system, provides an easy and convenient On-The-Fly solution for climbs.

Well-Rounded Weight & Performance. The length of the Piggyback reservoir is individually adjusted to the respective damper size so that exactly the right air volume is always available for an optimum power-to-weight ratio. By adding the large EVOL air chamber, the ride feel remains constant even on long descents. The result is a competent rear shock that is suitable for the entire range of Trail and All-Mountain sports and fits a variety of frame geometries.

Features – FLOAT X air shock

• High-Flow Piston architecture for even compression and a wide range of tuning options
• Reservoir length matched to damper size to reduce weight and for a more precise fit
• Extended rebound adjustment range for optimum adaptation to any terrain
• hydraulic Top-Out function to eliminate vibrations during full rebound movement
• adjusted air volume for lower average air pressure and wider tuning range
• optimized alignment of the air valve for easier inflation and higher frame compatibility
• finely graduated volume spacers for ultra-precise air spring tuning
• MCU Bottom-Out Bumper as bottom-out protection and to maintain progressivity at the end stop
• Firm-2-position adjustment lever mode with independent circuit system
• Single-Turn Compression adjuster with 12 positions (numbered, adjustable without tools)
